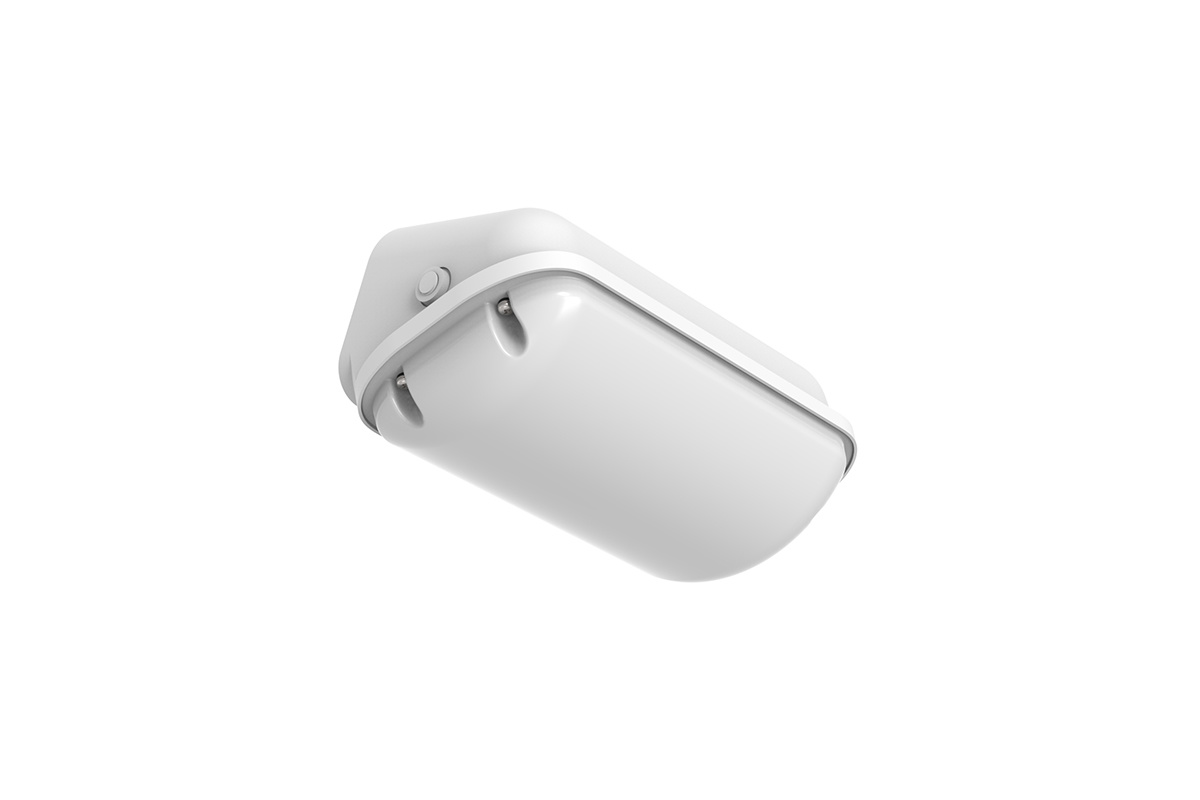

GEKKO

· 2CCT optional
· 45°down light
· UV-proof PC structure, IP65, IK08
· M20 entry holes on side and back
· PIR, Photocell and Microwave sensor optional
· LiFePO4 and Ni-Cd emergency optional
· DALI optional
· Easy installation

BULKHEADS

SPECIFICATIONS

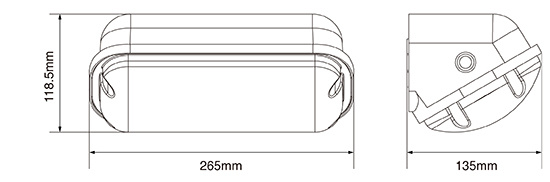

DIMENSIONS
INFORMATION

· 2CCT optional · 45°down light · UV-proof PC structure, IP65, IK08 · M20 entry holes on side and back · PIR, Photocell and Microwave sensor optional · LiFePO4 and Ni-Cd emergency optional · DALI optional · Easy installation

CODE	DESCRIPTION	WATTAGE	LUMEN	DIMENSIONS
SGEK/15	GEKKO LED Wall Light 15W	15W	1500lm	265x118.5x135mm
SGEK/Multi-P	GEKKO LED Wall Light 6.5-12W	6.5-12W	650-1100lm	265x118.5x135mm

Options	Finish	Colour Temperature	Construction	Accessory
M3: Emergency	BK: Black	830: 3000K	Diffuser: Polycarbonate	Trim
MS: Microwave Sensor	WH: White	840: 4000K	Trim: Polycarbonate
PC: Photocell		CCT: CCT Changeable	Base: Polycarbonate
PIR
DALI
