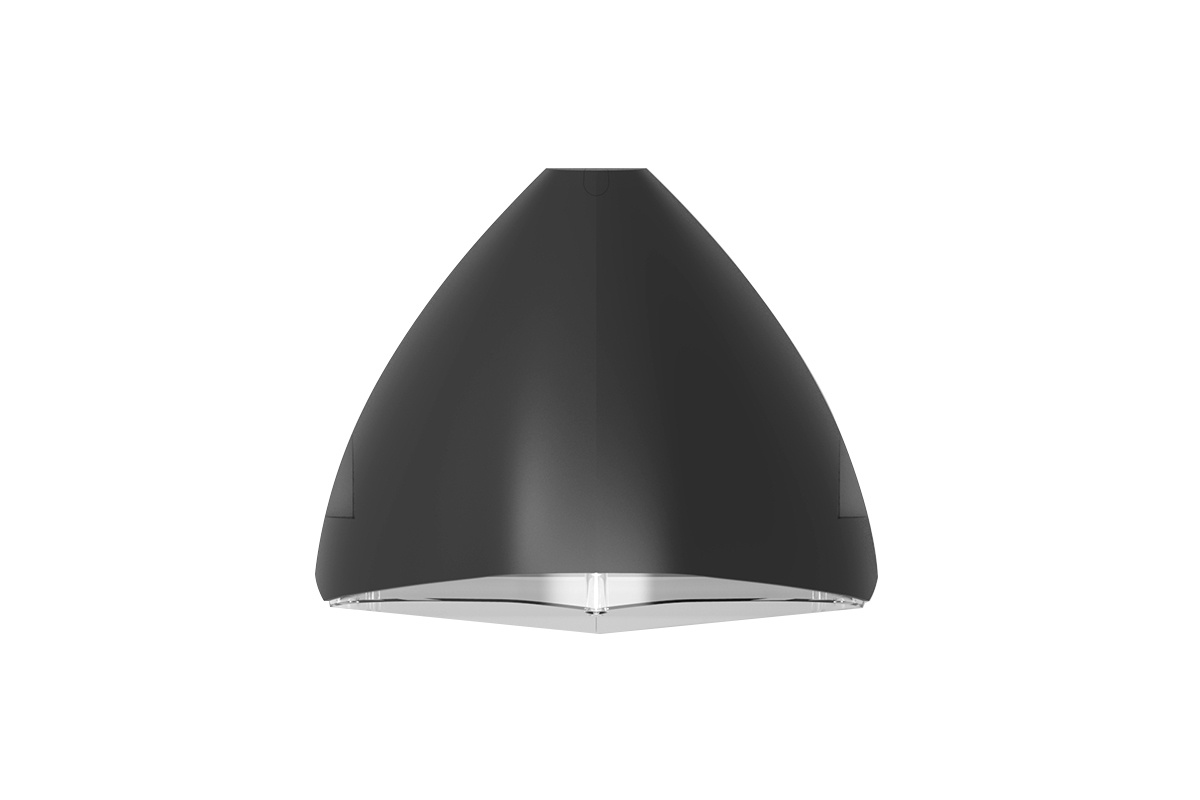

SHARK

· High efficiency, up to 140lm/w, non-flickering driver
· Wattage / lumen output selectable
· Modern and minimalist design, screw-less from front
· IP65 ingress protection and IK10 impact resistance
· Suitable for rear and side cable entry
· Suitable for conduit and BESA box installation
· PCB integrated with diffuser for easy installation
· Various optic options to achieve different beam angles and light distribution
· IP66 optional

OUTDOOR_Oct 2023.pdf

SPECIFICATIONS

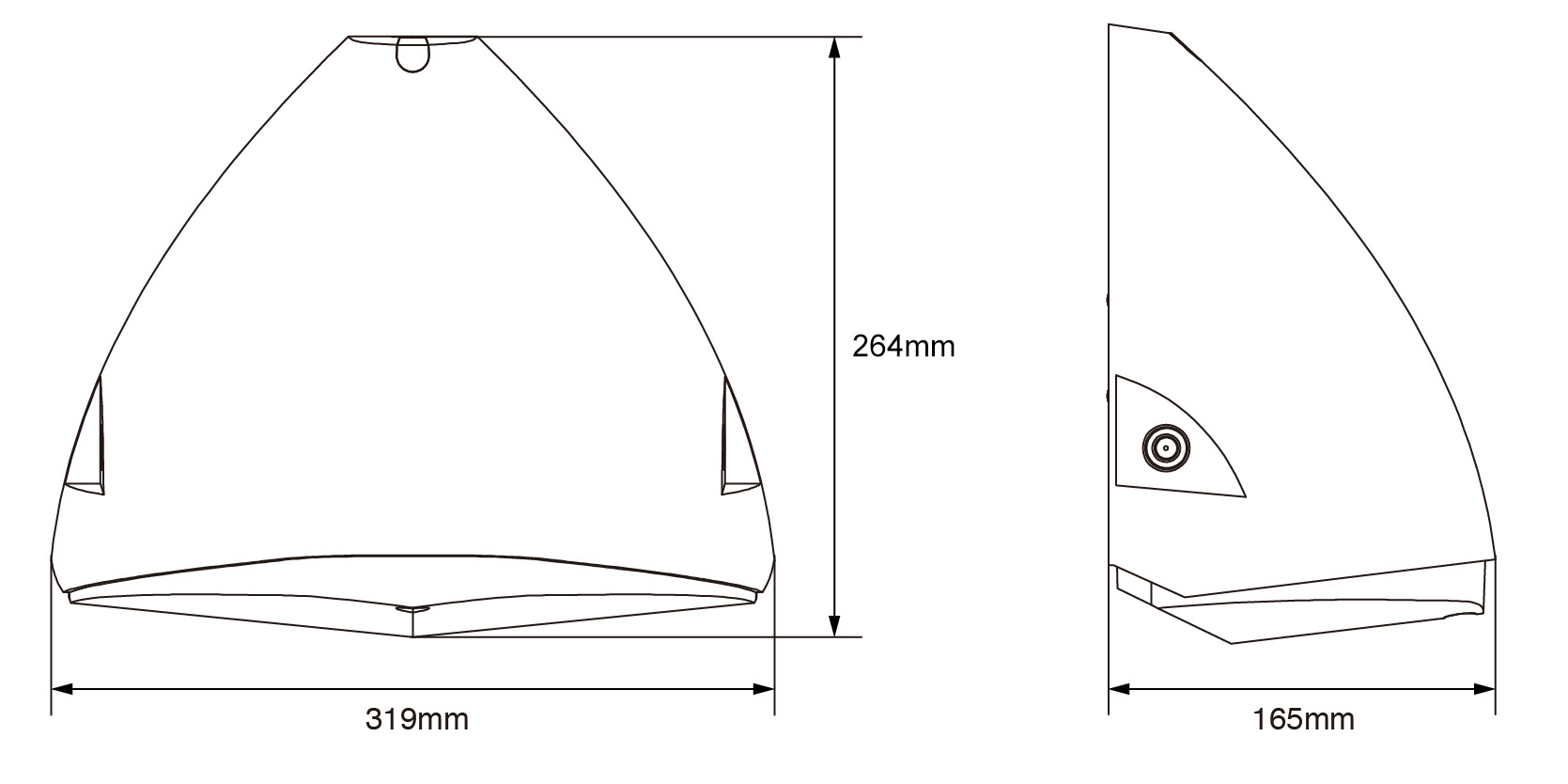

DIMENSIONS
INFORMATION

· High efficiency, up to 140lm/w, non-flickering driver · Wattage / lumen output selectable · Modern and minimalist design, screw-less from front · IP65 ingress protection and IK10 impact resistance · Suitable for rear and side cable entry · Suitable for conduit and BESA box installation · PCB integrated with diffuser for easy installation · Various optic options to achieve different beam angles and light distribution · IP66 optional

CODE	DESCRIPTION	WATTAGE	LUMEN	DIMENSIONS
SSHA	Shark LED	13W/18W/28W	1700lm/2500lm/3500lm	319x165x265mm

Options	Finish	Colour Temperature	Construction	Accessory
M3: Emergency	AN: Anthracite RAL 7016	830: 3000K	Housing: Die-casting aluminium	N/A
MS: Microwave Sensor	GR: Grey White RAL9002	840: 4000K	Diffuser: Polycarbonate
PC: Photocell	BK: RAL9005	865: 6500K
OA: Open Area Light Distribution		CCT: CCT Changeable
AS: Asymmetric Light Distribution
DALI
